Like An Autoclave Within An Autoclave
Sterilize Different
SteriCUBE® stops the insanity of sterilizing the same way
and hoping for different results
SteriCUBEs are validated for smaller lumens than any other technology on the market (0.7mm x 500mm)1
Like An Autoclave Within An Autoclave
Dense saturated steam is evenly dispersed throughout the SteriCUBE. This is due to the four cross-ventilation filters. Additionally, SteriCUBEs feature a funnel floor to rapidly evacuate steam and condensate during the autoclave dry cycle.

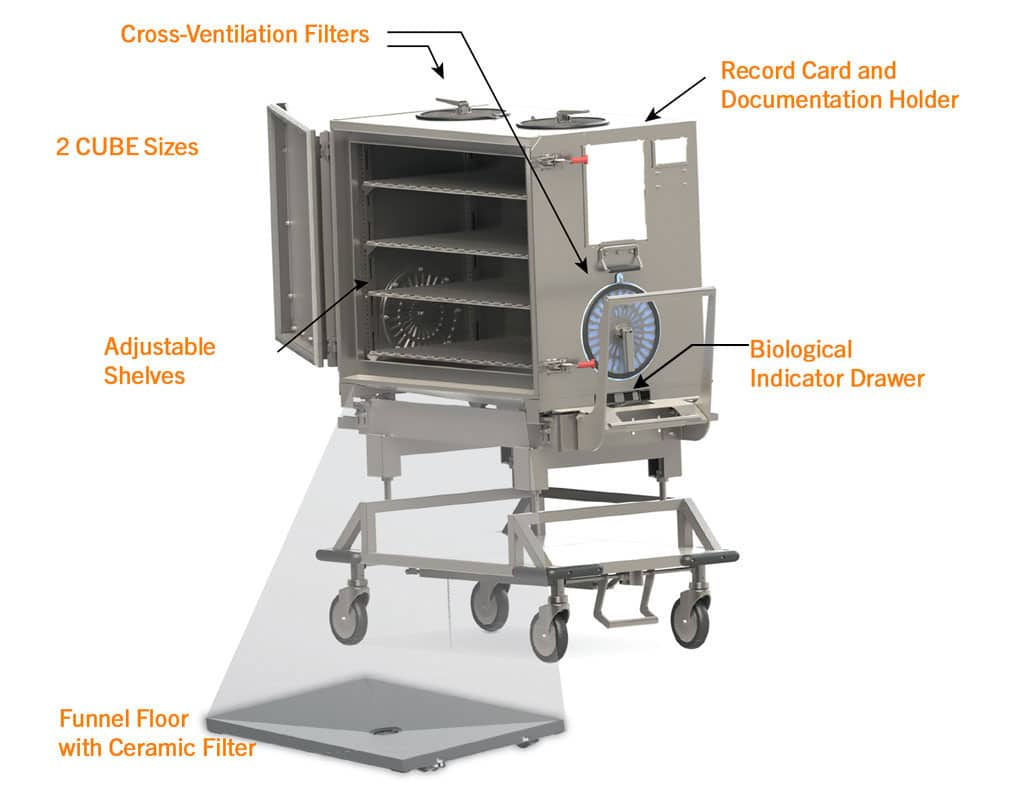

Hover over selected areas of the SteriCUBE
cabinet to learn more >
Record Card and Documentation Holder
Cross-Ventilation Filters
Through four cross-ventilation filters, dense saturated steam is evenly dispersed throughout the SteriCUBE.
Biological Indicator Drawer
Securely holds biological test pack
2 CUBE Sizes
MTS 225 for up to 225 lbs of equipment and the MTS 300 for up to 300 lbs
Adjustable Shelves
Allows customization for various tray and equipment geometries. Reduces back strain.
Funnel Floor with Ceramic Filter
Helps prevent wet loads by enabling moisture drainage
Title
The SteriCUBE Cabinet Components >
Title

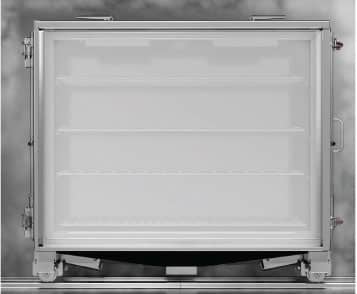

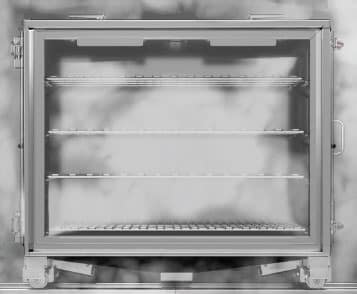

Our Cross-Ventilation Filters

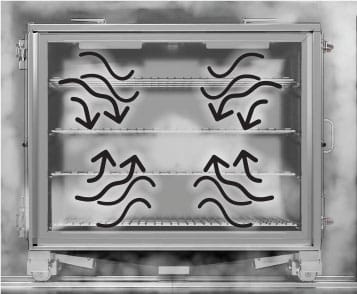

With our cross-ventilation filters, SteriCUBE behaves like an autoclave within an autoclave, dispersing dense saturated steam evenly throughout the cabinet.1
SteriCUBEs
(Feature a Funnel Floor)

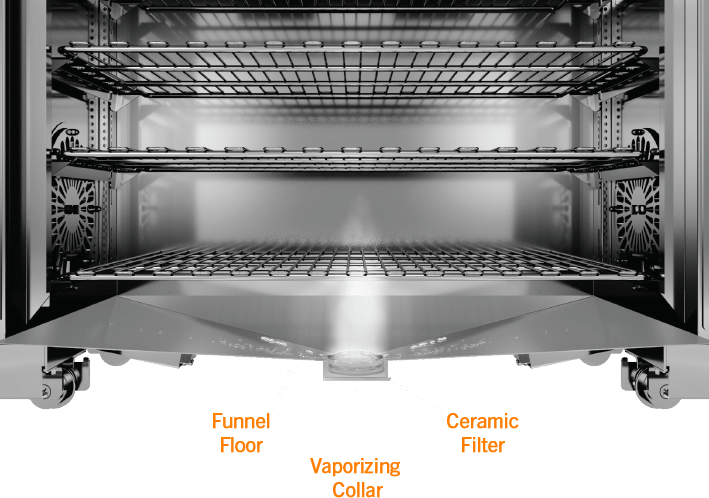

SteriCUBEs Feature a Funnel Floor
Unlike traditional flat-bottom sterilization cases, SteriCUBEs feature a funnel floor to rapidly evacuate steam and condensate during the autoclave dry cycle. This results in much shorter drying times than blue wrapped trays and rigid containers. For example, a sterilizer cycle typically has a 30 minute dry time (heat/vacuum to remove steam). SteriCUBEs are validated for a 5-minute dry time instead of the standard 30 minutes. However, the IFU of whatever is being sterilized must be followed.
vs.
Rigid Containers
(Flat-Bottom Condensate)

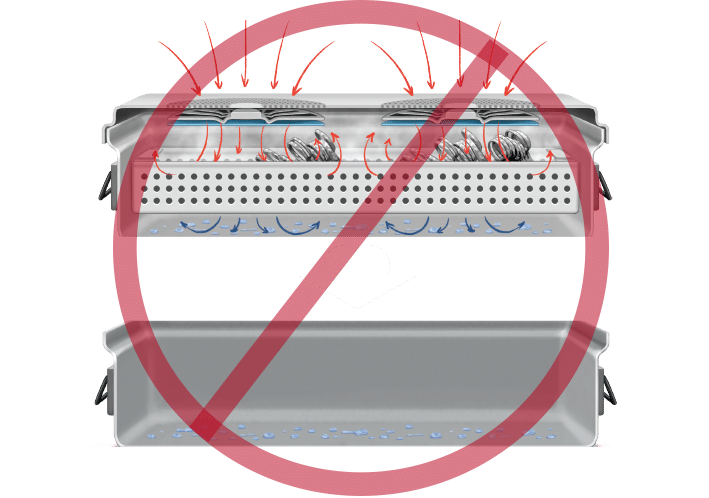

Rigid Containers Are All Wet
Traditional rigid sterilization containers are faster than blue wrap but often lead to “wet loads” or “wet packs” in 78% of facilities.2 While dorsal filters on rigid containers allow steam infiltration, they often hinder condensate evacuation from the flat bottom of the containers.3 SteriCUBE addresses these issues, ensuring effective steam distribution and rapid drying for consistently reliable results.
Be Cool
Faster Cooling Times After Sterilization
SteriCUBE requires approximately 45 minutes to cool down
Blue wrapped trays require approximately 2 hours to cool down
Depending on the ambient temperature, SteriCUBEs typically require approximately 45 minutes to cool after sterilization.
The surface area of a SteriCUBE expedites cooling, minimizing condensation concerns.
And, you don’t have to “crack” the door of the autoclave after a sterilization cycle.
SteriCUBE® Has Your Back

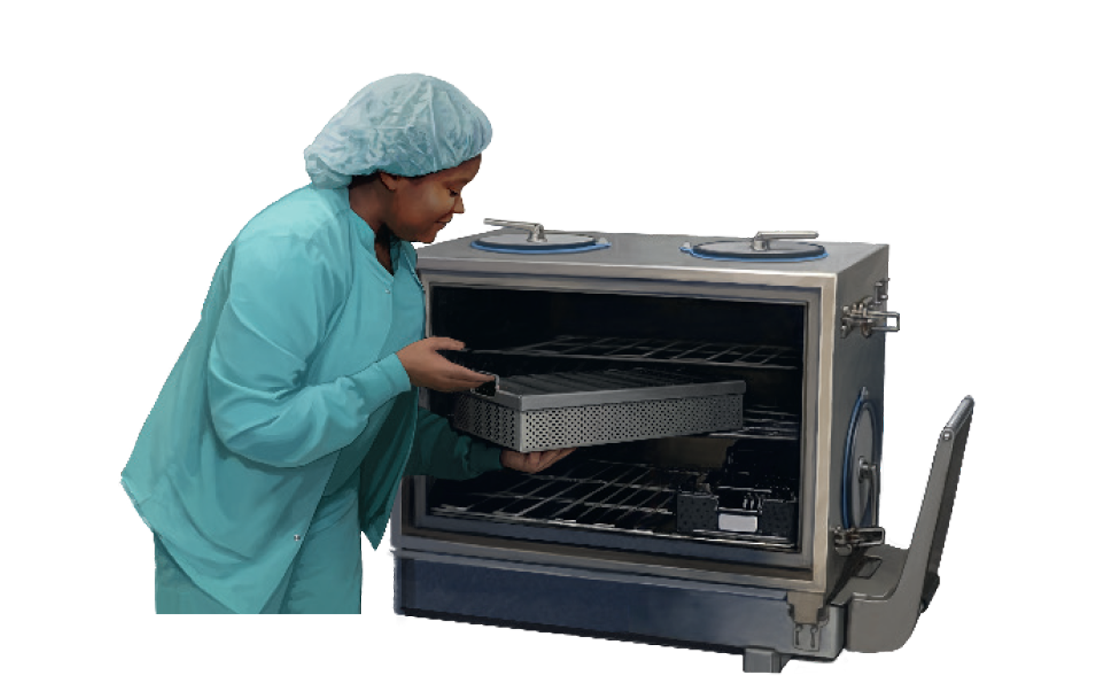

SteriCUBEs feature adjustable shelves to ease the loading of heavy trays.
SteriCUBEs Feature Adjustable Shelves to Ease the Loading of Heavy Trays
Orthopedic instrument trays can weigh as much as 25lbs.5 Sterile processing these trays and holding them in the OR can exert tremendous stress on the spine.6
This is one of the reasons SteriCUBEs were designed with adjustable shelves. SteriCUBE shelves support the far end of the heavy tray, allowing it to be slid-in and out, without straining your back.
Which SteriCUBE® Is Right For You?

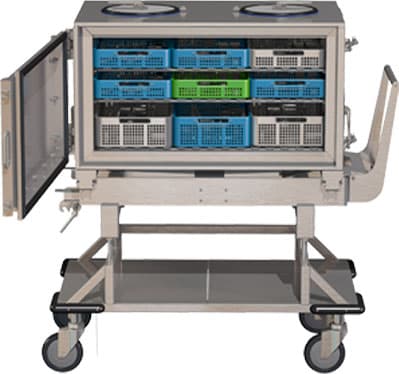

MTS 225
Up to 225 lbs
| Cube | Height 25.2 inches | Length 39 inches | Width 23 inches |
| Cart | Height Adjustable | Length 48.5 inches | Width 26 inches |

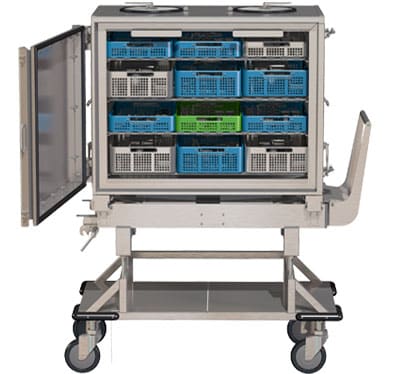

MTS 300
Up to 300 lbs
| Cube | Height 34.4 inches | Length 40.7 inches | Width 23 inches |
| Cart | Height Adjustable | Length 48.5 inches | Width 26 inches |
Send Message
Phone Shy? Drop us a line instead.
We’ll get back to you ASAP (We're really efficient)
Product features and availability are subject to change. For product usage, please refer to the SteriCUBE System product labeling. Please complete the form above for more information on our products.
Our company is proudly ISO 13485:2016 certified or registered by NQA
REFERENCES
1 SteriCUBE 510(K) K222328. Sept. 23.
2 AORN Guidelines. Guideline for Sterilization and Disinfection, 2020.
3 Chen Y. et al: Wet pack incidence in steam sterilization. Med Sci Monit, 2024.
4 Bahk, Michael S. 2024. “Smart Sterilization Container Technology: Blue Wrap Innovation.” Journal of Orthopaedic Experience & Innovation 5 (1).
5 Containment devices for reusable medical device sterilization. ANSI/AAMI ST77:2006.
6 “What is Awkward Posture? – Definition from Workplace Testing”. WorkPlaceTesting.com. Retrieved 2022-04-03.
